an Understated shred sled clad in bronze and steel designed FOR EASY GETTING UP AND FAST GOING DOWN.

THE FRAMESET

For this bike’s rider, we aimed to translate a much-loved 27.5” geometry to 29”, and lose the braze-ons (well, most of them). Austen, the future owner, is a fantastic rider and member of the Colorado Springs bike community, and when we told him we were finally launching our bespoke bike brand earlier last year, he was first in line to help us get things going with a sick build.

The frame is spec’d with oversized Tange and Dedacciai tubing and would happily boast a mid-heavyweight label. An aggressive rider, Austen rarely shuttles, so the aim was to create a bike that would be nimble and agreeable for all-day rides, straddling the hazy line between riding and descending, yet still stout enough for confident downhill lines and anything this maniac will inevitably throw at it (are trail bikes still a thing?).

Outfitted with SRAM UDH, a wireless dropper, and a wireless groupset, the bike’s only braze-on’s are for the rear brake line, and the big, buttery brazes and clear coat reveal carefully shaped contours that compliment the minimal silhouette of the frame. But don’t let this bike’s clean looks fool you– this gentleman will blow up your toilet without asking or spraying.

  • Reach - 484mm

    Stack - 624mm

    Headtube Angle - 66 deg

    Headtube Length - 102mm

    Seattube Angle - 74 deg

    Seattube Length - 390mm

    Bottom Bracket Drop - 60mm

    Bottom Bracket Height - 312mm

    Chainstay Length - 437mm

    Axle - 148mm (boost) w/UDH

    Maximum Tire Width - 29” x 2.4”

  • RockShox Lyric 140mm Travel

  • • UDH Rear Dropouts

    • 180mm Integrated Post Mount Rear Brake

    • Rear Brake Cable Braze-ons Only, Wireless SRAM Dropper and Groupset for Clean Aesthetic

    • Custom 40mm Stem with Extra Stack for Minimal Spacers

    • Custom Machined IS42/52 Headset

    • Mix of Tange and Dedacciai Tubing

    • No-Yoke Rear End

  • Mix of Dedacciai, Tange, and Velospec Tubing
    29 x 2.4 clearance
    SRAM UDH dropouts
    200mm post mount rear brake
    Yoke-free chainstays, 38t clearance
    Double downtube bottle bosses
    Xtra short seat tube
    Xtra long everything else
    NOS Independent Fabrication titanium seatpost collar
    Specialized Power Saddle
    Custom 31.8, 4-bolt stem w/ xtra stack
    Why titanium handlebar
    RevGrips
    Built specifically for SRAM/Rockshox wireless components (no braze-ons)
    SRAM wireless transmission
    SRAM Dub Bottom Bracket
    Rockshox Reverb AXS
    Prototype Good Year tires
    Chris King Headset
    ZIPP Moto wheelset
    SRAM Code RSC brakes
    Rockshox Lyric 140mm fork

A man in a striped shirt and cap working on a silver bicycle frame in a workshop.

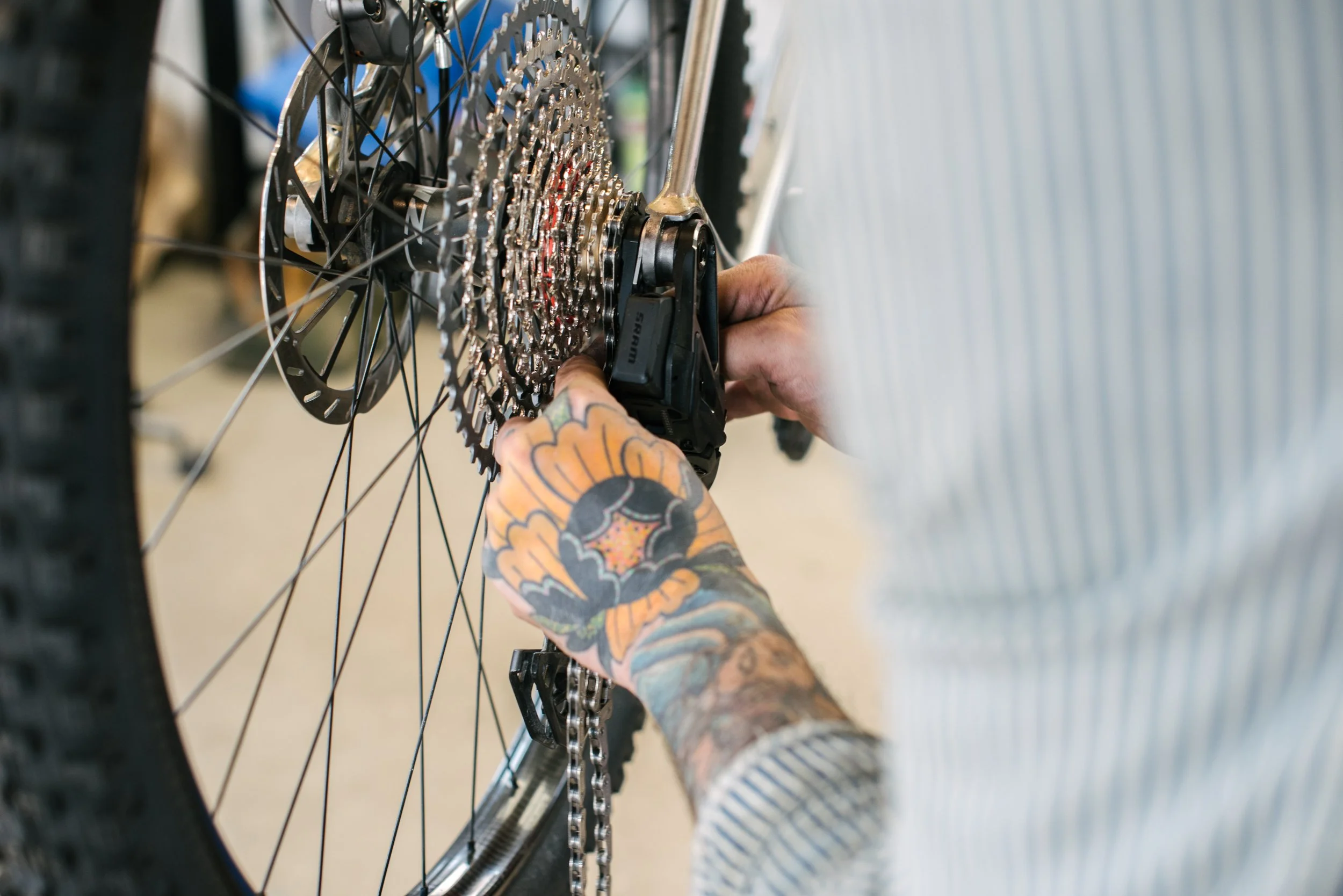

Person with tattooed arm working on a bicycle cassette and derailleur, adjusting gears.
A silver mountain bike with black tires and green front fork leaning against a beige brick wall outside a building with a blue door.
Two men working on a bicycle in a workshop, surrounded by tools hanging on a pegboard.
A man in a workshop working on a mountain bike, wearing black gloves and a green cap, with tools hanging on a pegboard wall behind him.
A man with glasses and tattoos fixes a mountain bike in a workshop.
A man riding a bicycle on a dirt road, lifting the front wheel off the ground, with a fence, leafless trees, and a trash bin in the background.
A person working on fixing a mountain bike, focusing on the rear wheel and gear system.
A tattooed man working on a bicycle repairs in a workshop.
A man with tattoos and glasses is bending over to look at a mountain bike. Another person wearing a gray hat, plaid jacket, and gray pants is squatting and pointing at the bike, which is positioned on a sandy ground near a wooden fence.
A modern mountain bike with a metallic gray frame, black suspension fork labeled 'NORCO', and knobby tires leaning against a beige brick wall on a gravel ground.
Side view of a mountain bike with thick, knobby tires, parked on gravel next to a brick wall.
A mountain bike leaning against a beige brick wall on a sidewalk, with the street and houses in the background.
Close-up view of a bicycle's rear wheel, chain, and frame, with a brick wall to the side and gravel ground underneath.
Two men discussing a mountain bike outdoors, with a wooden fence in the background.
Top-down view of a bicycle from the pedal to the front fork, with pedals, chain, crank, and gear system visible, on gravel ground.
A man in a baseball cap and hoodie taking a photo of a mountain bike with his phone. The bike is silver with black tires and is leaning against a brick wall near a blue door.
A mountain bike with a silver frame, black seat, and tires with deep treads, leaning against a beige brick wall.
A close-up of a modern mountain bike with large knobby tires, metallic frame, and black saddle, leaning against a brick wall on pavement.
A black and green mountain bike leaning against a beige brick wall on a gravel surface.
A mountain bike leaning against a beige brick wall in an alleyway, with a cloudy sky overhead.
Close-up of a mountain bike's rear tire, seat, pedal, and part of the frame, with a brick wall in the background.
A person crouching on gravel ground taking a photo of a gray mountain bike with a black saddle and black handlebars, leaning against a pale brick wall.

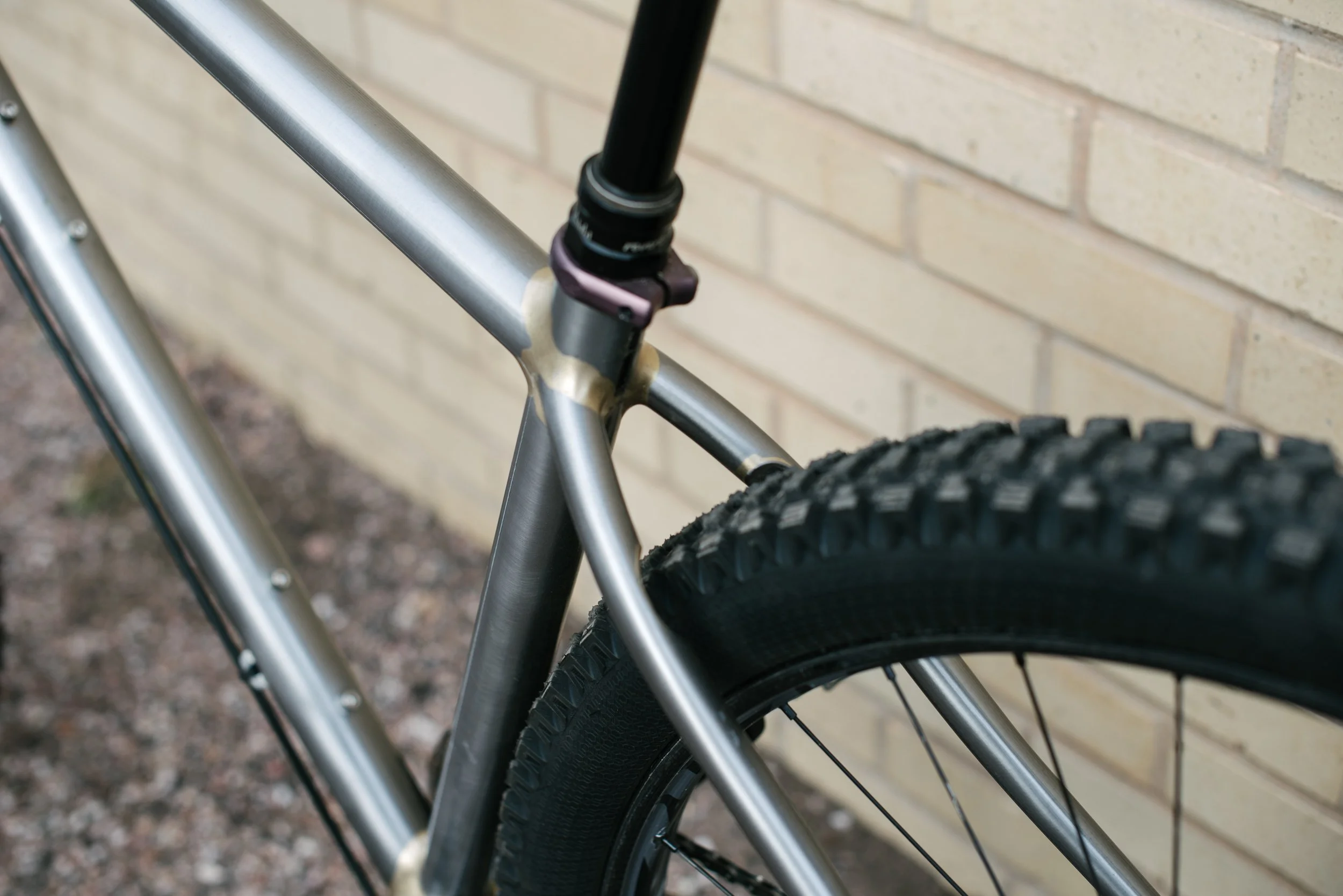

Close-up of a mountain bike frame where the seat tube meets the top tube, showing a metal weld, with a rear suspension shock absorber attached to the seat post and a portion of a knobby tire in the background.
Upward view of a mountain bike's front wheel and handlebars on a gravel trail.
Close-up of a mountain bike rear wheel with disc brake rotor and derailleur against a brick wall.
Close-up of a bicycle handlebar with a gear shifter and grip, with a blurry bicycle and brick wall in the background.
Close-up of a mountain bike's crankset, chain, and pedals with rugged tires and a wooden background.
A mountain bike with a silver frame, black suspension fork, and knobby tires leaning against a cream brick wall on a gravel surface.
A black mountain bike with thick tires leaning against a beige brick wall on a gravel surface.
A man riding a mountain bike on a residential street in front of a garage with a white door and a dark red car parked nearby.

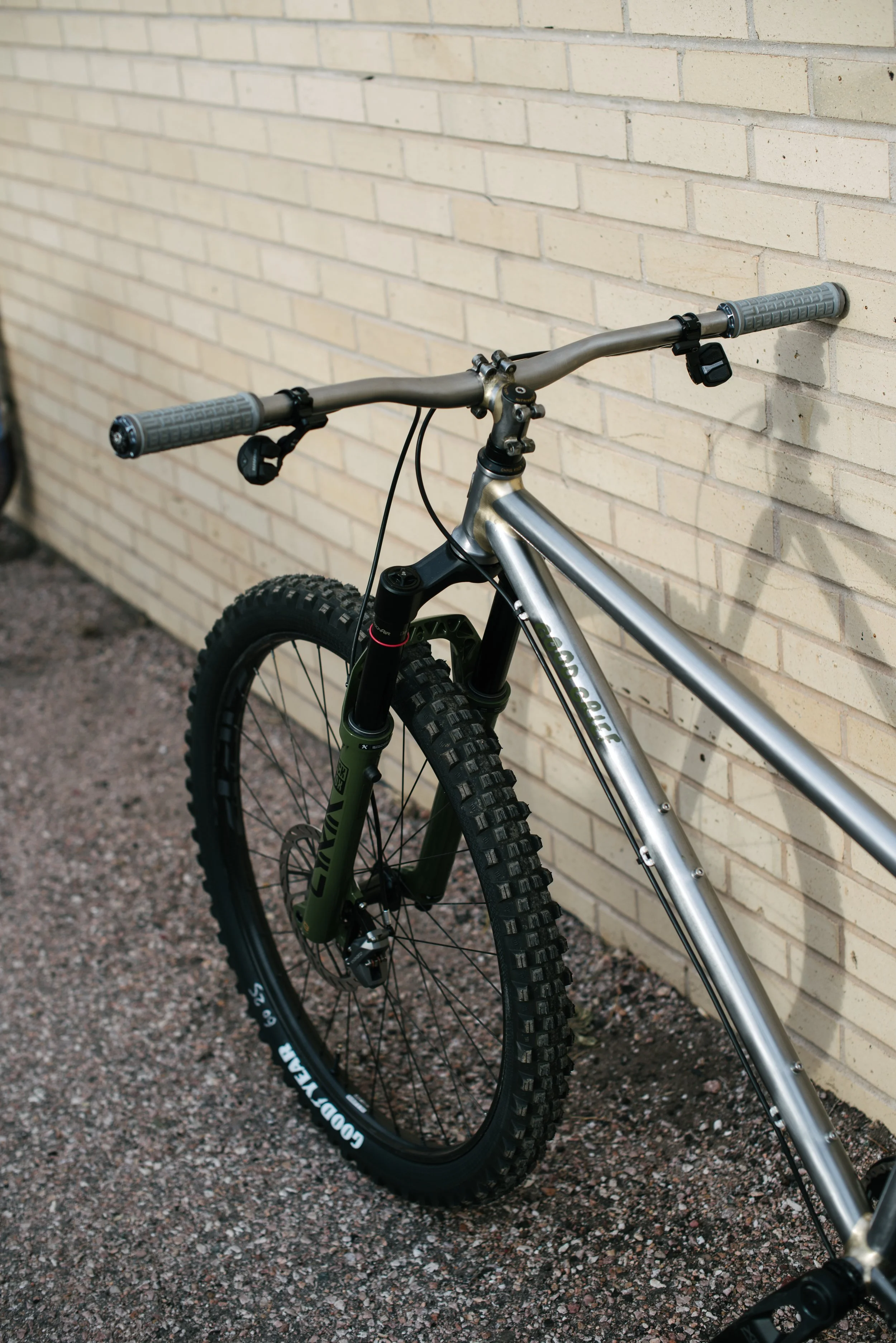

Close-up of a mountain bike with a silver frame, black tires, green front suspension fork, and a simple handlebar against a brick wall.
A man with a baseball cap, striped hoodie, and gray pants holding a silver mountain bike with big tires, standing against a beige brick wall next to a dark blue door.
A man wearing a baseball cap and a colorful jacket is walking past a pickup truck with a mountain bike mounted on a bike rack attached to the back of the truck. The truck has a Colorado license plate.
Close-up of a silver bicycle frame, rear wheel, and black seat post against a brick wall.
Close-up of a mountain bike's rear wheel and gear cassette, showing multiple gears, chain, and derailleur with a wooden fence background.
Close-up of a mountain bike's rear wheel, disc brake, and gear system against a brick wall.
A man standing next to a mountain bike in front of a beige brick wall, wearing a cap, striped hoodie, and gray pants.
Close-up of a mountain bike with a silver frame and green 'Good Grief' sticker, leaning against a Ford truck with a Lee logo on the back window.
A mountain bike mounted on a bike rack attached to the back of a white truck, with a chain-link fence and trees in the background.
A silver mountain bike mounted on a white bike rack attached to the back of a silver truck. The truck is parked on a dirt driveway, and there is a green trash bin on the right side of the image. The background shows leafless trees, power lines, and h

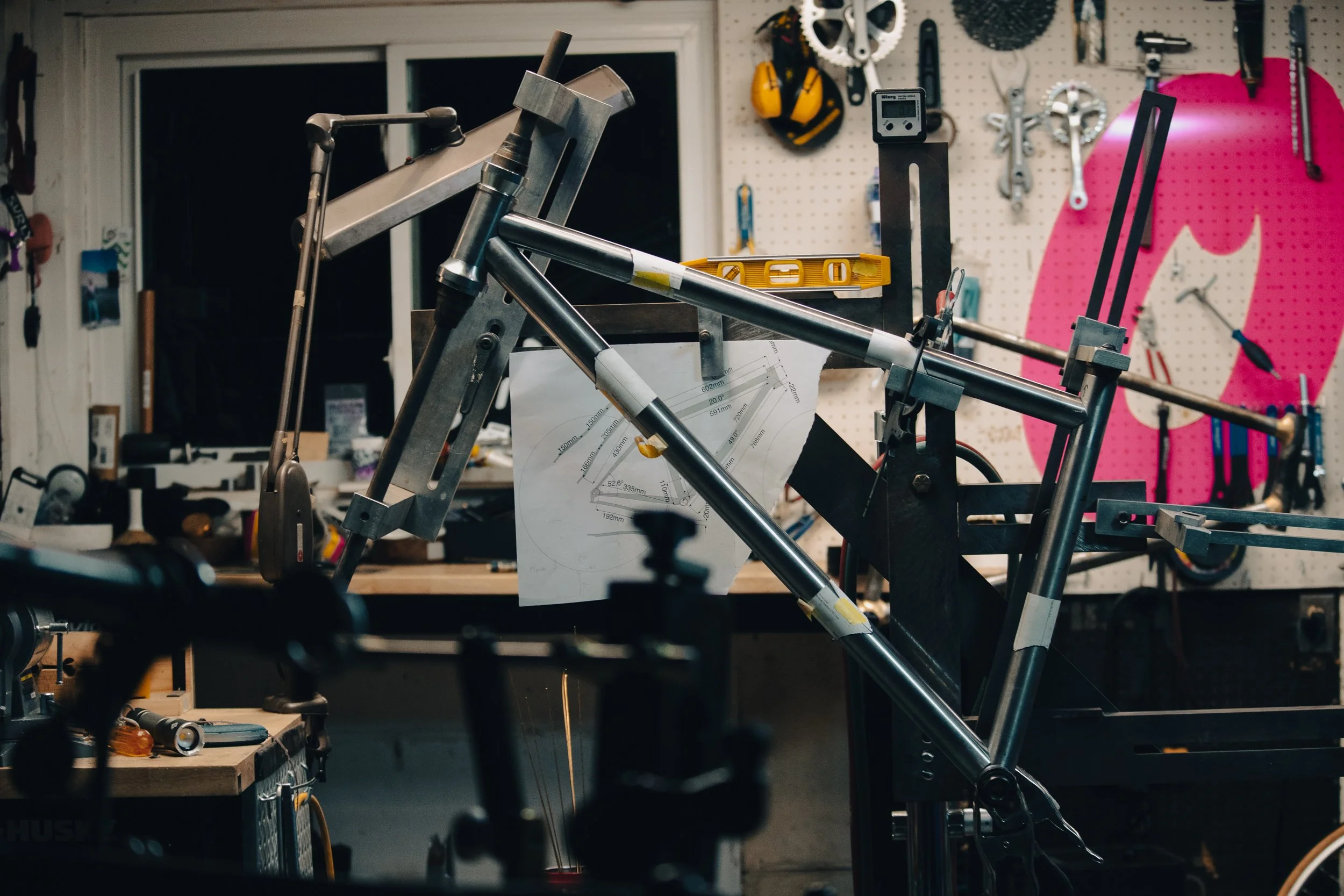

A metal bicycle frame under construction on a workbench in a workshop.
Close-up of a bicycle suspension fork in a workshop or garage setting.
Close-up of a bicycle suspension fork mounted on a workbench in a workshop.
Close-up of a metallic microscope objective lens mounted on a microscope
Close-up of a metal motorcycle or bicycle fork with a suspension system.
Close-up of a metallic bicycle fork in a workshop setting, with a yellow level tool in the foreground.
A cluttered workbench with various tools and objects including a yellow tape, a metal pipe, a calculator, a ruler, gloves, and miscellaneous small tools and parts.
Part of a bicycle frame under construction with a metal tube and a suspension fork in a workshop, with tools and blueprints on the wall in the background.
Close-up of a digital gauge attached to a metallic structure, displaying a reading of 104.0, in an industrial or workshop setting.
Photo of a bicycle frame being assembled in a workshop with tools and equipment hanging on a pegboard in the background.
Close-up of a metallic bicycle frame in a workshop, mounted on a stand, with tools and workshop supplies in the background.
Close-up of a bicycle fork and handlebar assembly in a workshop, with colorful posters and wooden walls in the background.
Close-up of a bicycle frame held in place by a work stand in a workshop.
Close-up view of a metallic bicycle fork clamped in a work stand in a cluttered workshop.
Close-up of a welding setup with metal pipe, clamp, and welding stand in a workshop.

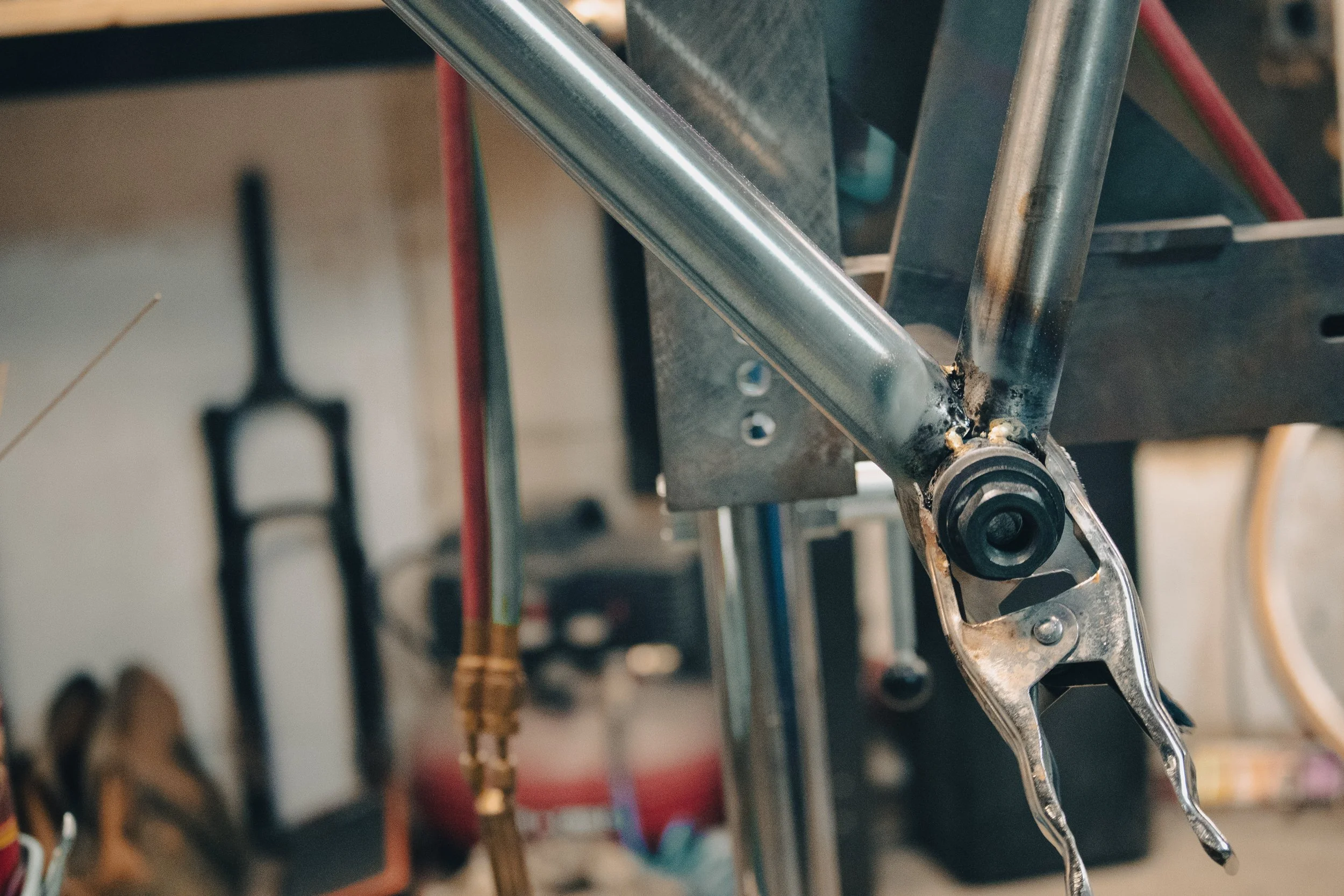

Close-up of a bicycle frame being welded, showing metal tubes, weld marks, and a mounting bracket, in a workshop setting.
Close-up of a bicycle fork and headset in a workshop setting.
Close-up of a metal structure, possibly part of furniture, showing welded joints and metallic rails.
Close-up of a metal bicycle frame mounted on a workstand in a workshop, with a yellow spirit level and stickers visible.
A workbench with plumbing diagrams, tools, and bottles of glue or adhesive, in a workshop or craft room with a window that has a 'Good Grief' sticker and smiley face decals.
Close-up of a bicycle frame being assembled or repaired in a workshop, with various clamps and tools around it.
A cluttered workbench with papers, tools, and supplies, viewed through a metal bicycle rack in the foreground. There is a window in the background with some autumn leaves visible outside.
A bike frame being welded in a workshop, with bicycle wheels and tools in the background.
A bicycle frame being assembled and held in place on a workbench in a garage or workshop. The background shows tools, a pegboard, and posters on the wall.
A workbench in a workshop with a partially built metal frame or structure clamped in place, with woodworking tools and supplies around.
A bicycle frame on a workbench in a workshop, with a pegboard wall behind it filled with tools and a large pink 'LOVE' sign.
Partially assembled bicycle frame in a garage or workshop with a pegboard wall in the background, tools hung on the wall, and a pink decorative piece.

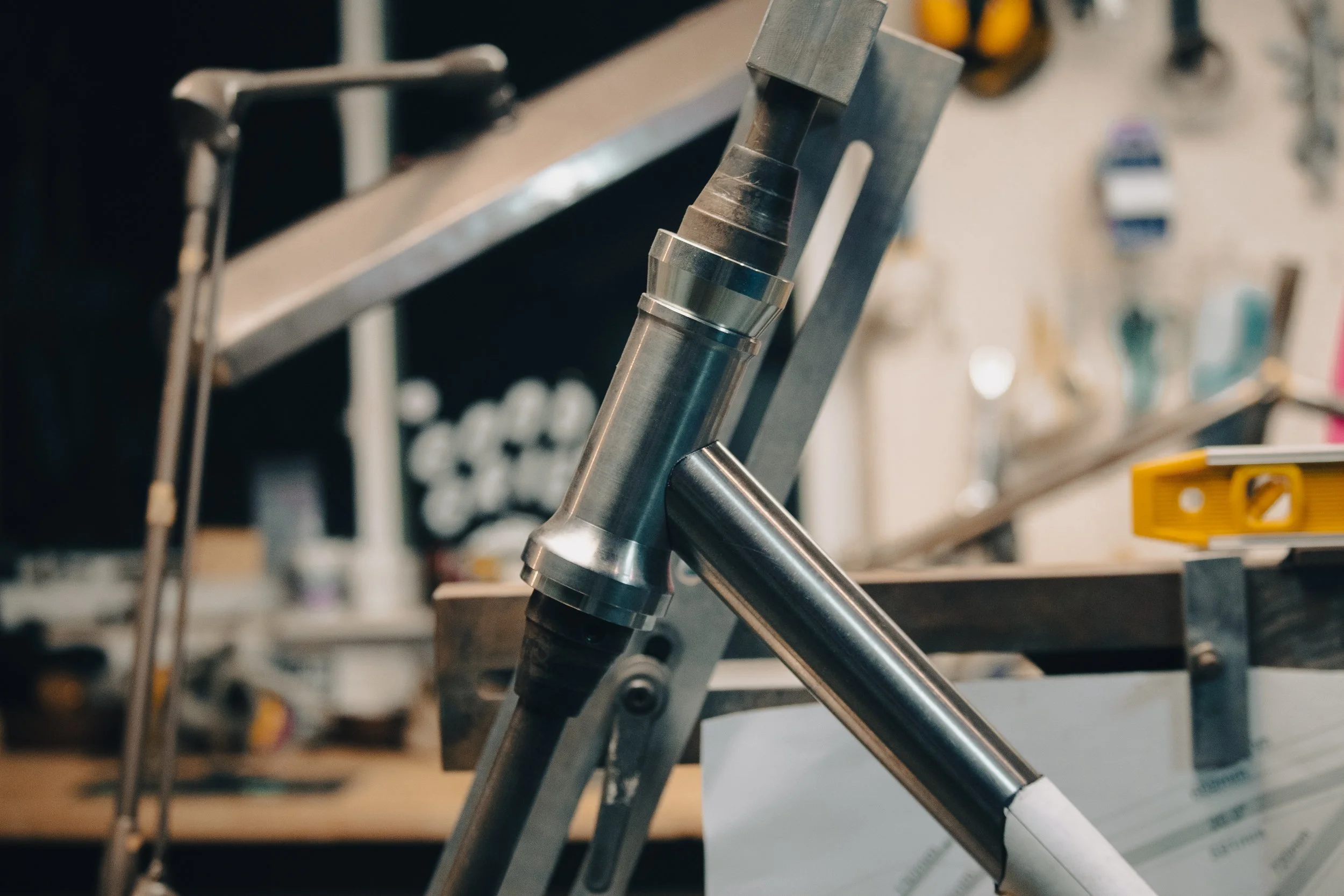

A bicycle frame in a workshop, showing the top of the head tube with welded joints and a partially assembled handlebar stem.
